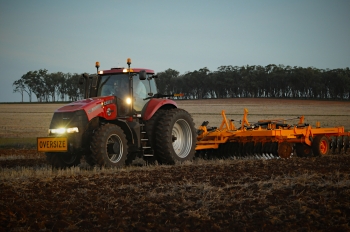

8 - 4 Series Triple-Flex Tandem Disc Ploughs

8 - 4 Series Triple-Flex Tandem Disc Ploughs
Triple-Flex Models
No# of Discs
56
60
64
68
72
76
80
84
88
92
Width of Cut
6.24m
6.66m
7.1m
7.55m
7.94m
8.43m
8.87m
9.31m
9.75m
10.2m

20'6"
21'11"
23'4"
24'10"
26'2"
27'8"
29'1"
30'7"
32'
33'6"
Transport Width
4.45m
4.45m
4.45m
4.45m
4.45m
4.45m
4.45m
4.98m
4.98m
4.98m
 Technical Details
Discs: Front 28" x 8 mm all round
Tyres: 12.5/80-1816 Ply Goodyear AM Implement up to 80 plate, 84-92 super single truck tyres
Gang Bolts: 2" diameter all model (H/T)
Bearings: Protected greasable gang bearings with triple lip seal
main Frame: 200 x 100 x 9mm RHS, Laminated with 20mm plate
Disc Weight: Approx 170kg per disc
Stub Axles 6 stud 75 Ø up to 76 plate - 90 Ø stud 80-92 plate
 Other Features
Gang angles independently adjustable Equal side loading on all gang bearings
9" spacings Roll out gangs
Hydraulic leveling cylinder Bearing hangers of slim design
Discs spacers reduced diameter 4" more disc wear with increased soil and trash flow Pressed from hi - tensile steel
  Bolted stub axles with triple lip seals and dust covers
Options
Walking wheels on centre frame 84-92 plate
Aircraft tyres + 90mm axles - 8 stud
Large 219mm spools for heavy applications
